Description

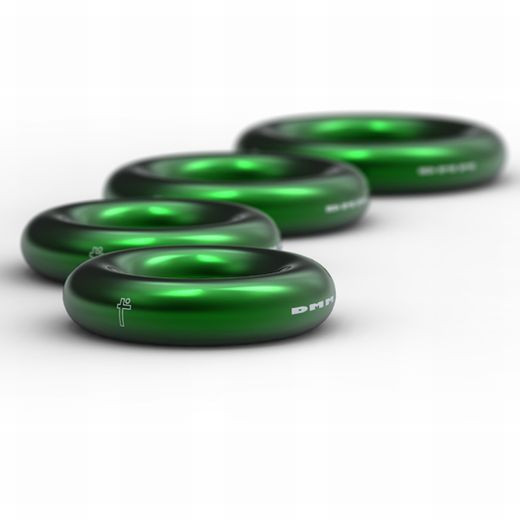

DMM has produced a range of 4 anchor rings that have a multitude of tree care applications. The rings are turned from solid 7075 aluminum, fully heat treated to T6 condition and anodised for identification and corrosion prevention. Sized is based on the internal diameter.
Details
MBS: 30kN
WLL: 6kN
Source: Wales
Features
• Helps organize single or multiple attachments
• Compatible with a wide range of hardware and textile connecting components
• Four sizes: 26, 28, 34, 40 mm internal diameter
• 12 mm circular cross section is the optimum contact dimension for many carabiners
• Combines with DMM Revolver Locksafe carabiner to create a ‘swinging captive eye’
• Certified static and dynamic strengths
• Solid construction provides for good abrasion resistance
• Individual serial marking
Technical Specifications
• CE Certified to EN795B:1997 [Transportable temporary anchor devices]
• CNC machined from 7075 T6 aluminium for high strength to weight ratio
• Anodised to EN12373-1:2001 Class 10E1 for corrosion protection
- Manufacturer Part Number:
- R500-26
