Description

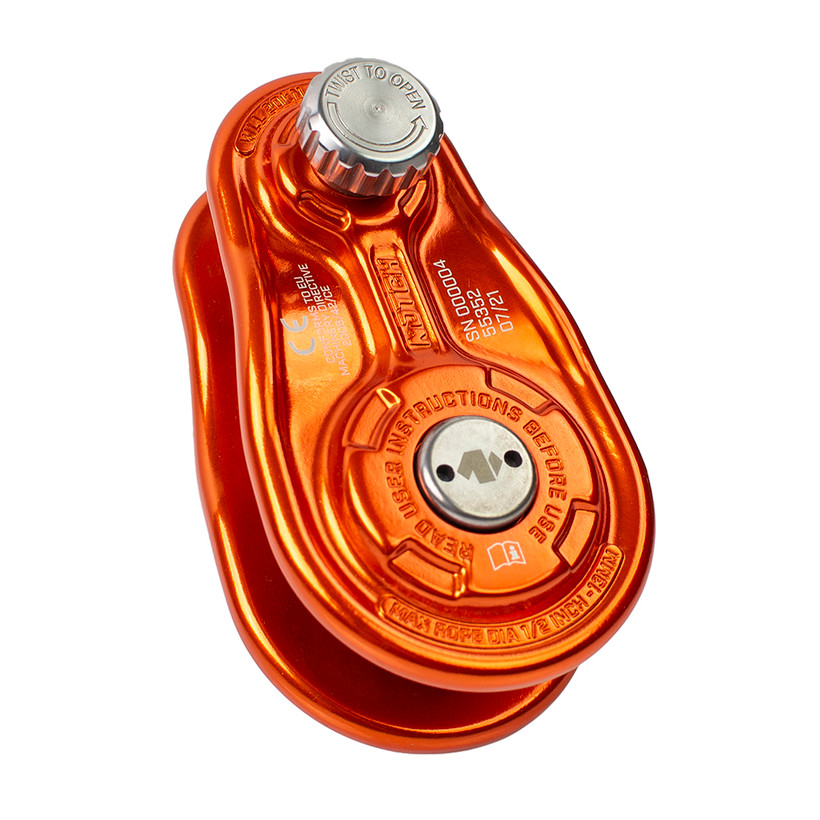

The Notch 1/2" Rigging Block is a small sized lightweight arborist block accepts working lines up to 1/2” (13mm) diameter.
Details
Features & Benefits:
- 20 kN WLL / 100 kN MBS
- Hot forged aluminum side plates with rope friendly rounded cheeks
- Precision CNC machined aluminum sheaves with wide bend radii
- Low profile, secure, easy to-open captive screw pin lock
- High wall, full diameter, improved anchor sling protection
- Wide, concave upper sheave accepts 5/8” anchor slings
- Flared side-plates reduce twisting in complex rigging scenarios
- WORKING LOAD LIMIT: (WLL) 20 kN (4,496 lbs.)
- MBS: 100 kN (22,480 lbs.)
- MAX WORKING LINE DIAMETER: 1/2 in (13mm)
- MAX SLING DIAMETER: 5/8 in (16mm)
- UPPER SHEAVE DIAMETER: .75 in (19mm)
- LOWER SHEAVE DIAMETER: 1.5 in (38mm)
- HEIGHT: 4.7 in (118mm)
- WIDTH: 2.7 in (68mm)
- WEIGHT: 1 lb. (.45kg)
- SIDEPLATE MATERIAL: Aluminum
- SHEAVE MATERIAL: Aluminum
- AXLE MATERIAL: Stainless Steel
- Manufacturer Part Number:
- ID07135
- Country of Manufacture:
- TW
