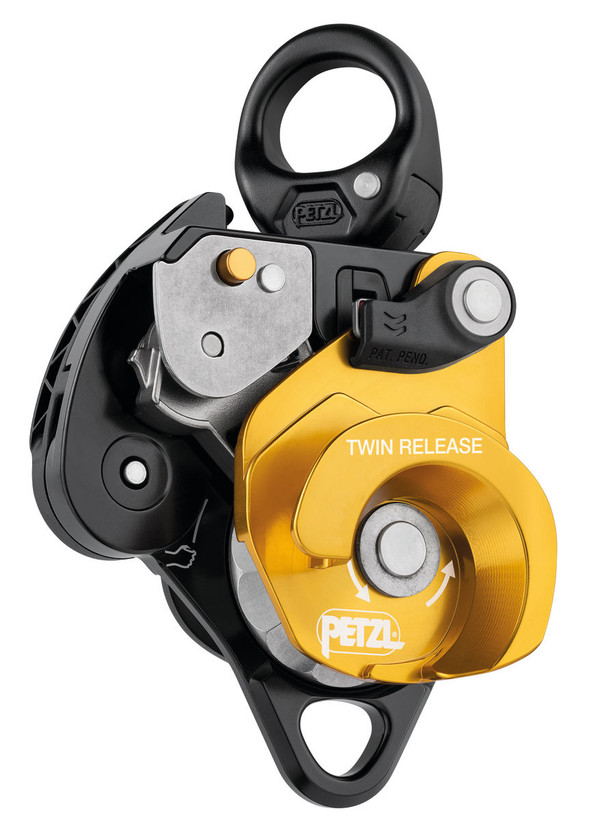

Twin Release Pulley

Double progress capture pulley with handle to release cam specifications

• Ergonomic handle for easy release of the cam
• Brake integrated into main moving side plate allowing comfortable and precise control when lowering heavy loads
• Cam can be locked in the open position to easily feed slack
• Toothless cam helps preserve the rope and allows for easy transition from lowering to hauling and vice-versa

 4:1 haul systems Efficiency Specifications

• Large-diameter sheave mounted on sealed ball bearings for excellent hauling efficiency
• Main faceted sheave with single-direction rotation provides excellent efficiency when hauling and adds friction zones with the  rope for additional braking when lowering heavy loads
• Parallel-mounted sheaves and auxiliary attachment point for setting up various types of complex haul systems

Easy to use attributes

• Triple-action opening of the moving side plates is quick and easy, even with gloves
• Red indicators provide a visual warning when the side plates are unlocked
• The rope can be installed with the device connected to the anchor
• Hole in the handle for installation of a remote control cord

Swivel attributes

• Allows pulley to be oriented under load
• Accommodates up to three carabiners
• Swivel and auxiliary attachment point allows the use of ropes and slings for easier rigging

Specifications

• Weight: 800 g
• Material(s): Aluminum, stainless steel, nylon
• Certification(s): CE EN 567, CE EN 12278 partial*, NFPA 2500 Pulley General Use, NFPA 2500 Rope Grab Technical Use, UKCA * Meets performance requirements of the EN 12278 standard
• System Certification(s): ANSI Z359.4 Synthetic Rope Tackle Block (more information in the Instructions for Use)
• Min. rope diameter: 8 mm
• Max. rope diameter: 13 mm
• Sheave type: Sealed ball bearings
• Faceted Sheave Diameter: 40 mm
• Sheave diameter: 38 mm
• Efficiency: 95 %
• Maximum Working Load: 280 kg
• Maximum working load of the auxiliary attachment point: 22 kN
• Breaking strength: 36 kN
