Description

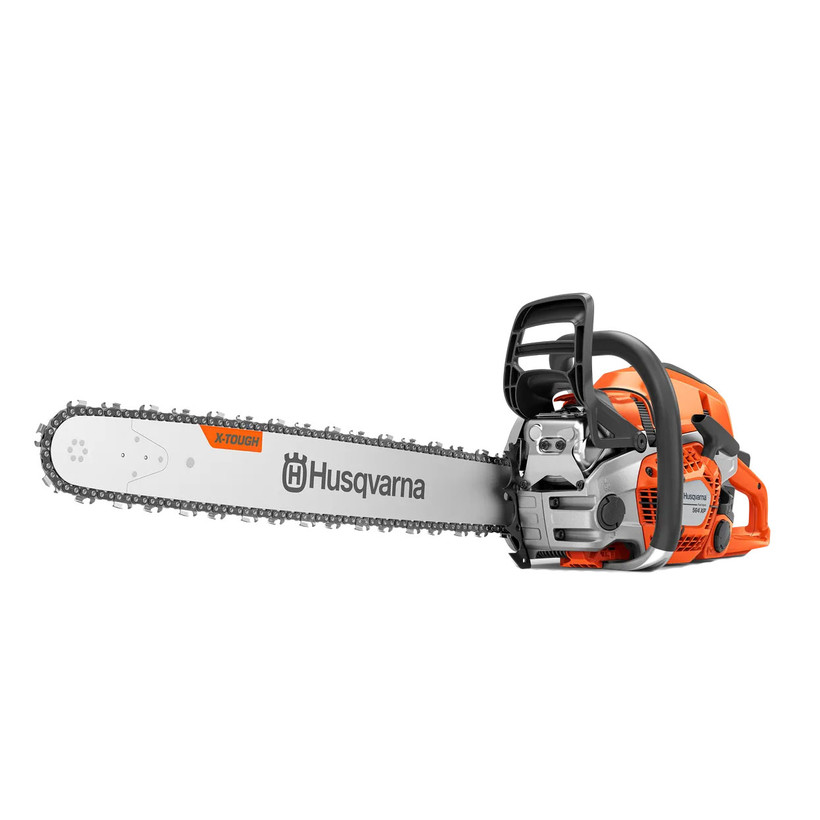

Husqvarna 564 XP is a groundbreaking 60cc chainsaw for forestry and tree care professionals seeking cutting-edge performance. Combining the size and maneuverability of a 50cc chainsaw with the power of a 70cc, it delivers an outstanding power-to-weight ratio in a compact body.
Details
Experience an innovative combination of advanced technologies, including the fuel injection system and a new engine for instant acceleration and maximized productivity throughout the workday. Furthermore, the user experience is refined with an easy starting procedure and low vibrations, reducing strain on your body.
| Specification | 18" X-Tough RSN 3/8" C85 970 71 15-02 |
20" X-Tough RSN 3/8" C85 970 71 15-03 |
24" X-Tough RSN 3/8" C85 970 71 15-04 |
28" X-Tough RSN 3/8" C85 970 71 15-05 |
24" US X-Tough Light RSN C85 970 71 15-12 |
28" US X-Tough Light RSN C85 970 71 15-13 |
|---|---|---|---|---|---|---|
| Engine | ||||||
| Power output | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp | 5.4 hp |
| Cylinder displacement | 62.4 cm³ | 62.4 cm³ | 62.4 cm³ | 62.4 cm³ | 62.4 cm³ | 62.4 cm³ |
| Torque, max. | 3.9 Nm | 3.9 Nm | 3.9 Nm | 3.9 Nm | 3.9 Nm | 3.9 Nm |
| Torque, max. at rpm | 8,400 rpm | 8,400 rpm | 8,400 rpm | 8,400 rpm | 8,400 rpm | 8,400 rpm |
| Chain speed at max power | 69.9 ft/s | 69.9 ft/s | 69.9 ft/s | 69.9 ft/s | 69.9 ft/s | 69.9 ft/s |
| Clutch engagement speed | 4,200 rpm | 4,200 rpm | 4,200 rpm | 4,200 rpm | 4,200 rpm | 4,200 rpm |
| Electrode gap | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in | 0.02 in |
| Idling speed | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm | 2,800 rpm |
| Ignition module air gap | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in | 0.01 in |
| Maximum power speed | 10,200 rpm | 10,200 rpm | 10,200 rpm | 10,200 rpm | 10,200 rpm | 10,200 rpm |
| Oil pump type | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow | Adjustable flow |
| Spark plug | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H | NGK CMR6H |
| Equipment | ||||||
| Recommended bar length, min | 15 in | 15 in | 15 in | 15 in | 15 in | 15 in |
| Pitch | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
| Recommended bar length, max | 28 in | 28 in | 28 in | 28 in | 28 in | 28 in |
| Chain type | C85 | C85 | C85 | C85 | C85 | C85 |
| Bar length | 45 cm | 50 cm | 60 cm | 70 cm | 60 cm | 70 cm |
| Bar length (inch) | 18 in | 20 in | 24 in | 28 in | 24 in | 28 in |
| Sprocket type | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 | Rim 7 |
| Gauge | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm | 1.5 mm |
| Dimensions | ||||||
| Weight (excl. cutting equipment) | 12.8 lbs | 12.8 lbs | 12.8 lbs | 12.8 lbs | 12.8 lbs | 12.8 lbs |
| Sound and Noise | ||||||
| Sound pressure level at operator's ear | 106 dB(A) | 106 dB(A) | 106 dB(A) | 106 dB(A) | 106 dB(A) | 106 dB(A) |
| Sound power level, guaranteed (LWA) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) | 119 dB(A) |
| Sound power level, measured | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) | 117 dB(A) |
| Vibration | ||||||
| Equivalent vibration level (ahv, eq) rear handle | 3 m/s² | 3 m/s² | 3 m/s² | 3 m/s² | 3 m/s² | 3 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 3.3 m/s² | 3.3 m/s² | 3.3 m/s² | 3.3 m/s² | 3.3 m/s² | 3.3 m/s² |
| Lubricant | ||||||
| Oil tank volume | 0.68 US pint | 0.68 US pint | 0.68 US pint | 0.68 US pint | 0.68 US pint | 0.68 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
| Emission | ||||||
| Exhaust emissions (CO₂ EU V) | 762 g/kWh | 762 g/kWh | 762 g/kWh | 762 g/kWh | 762 g/kWh | 762 g/kWh |
